"Audio Machine"

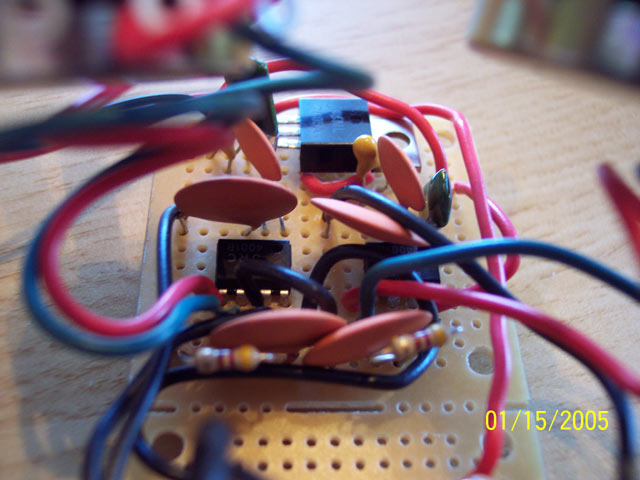

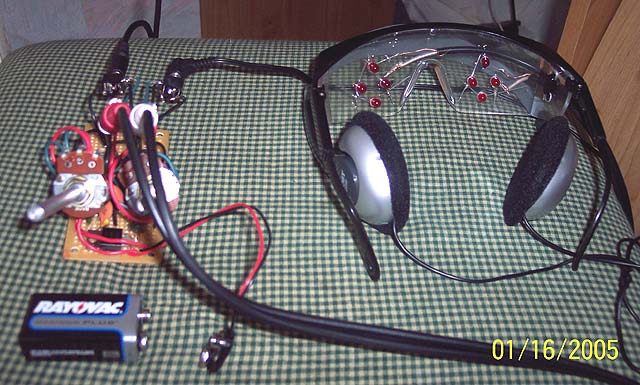

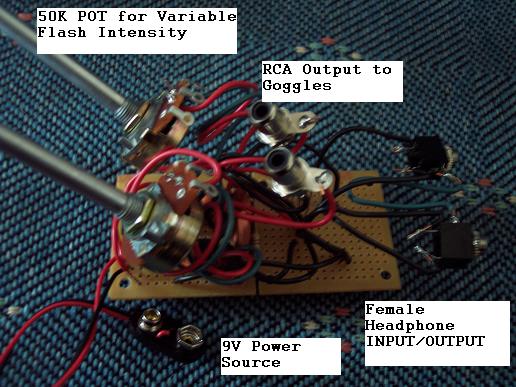

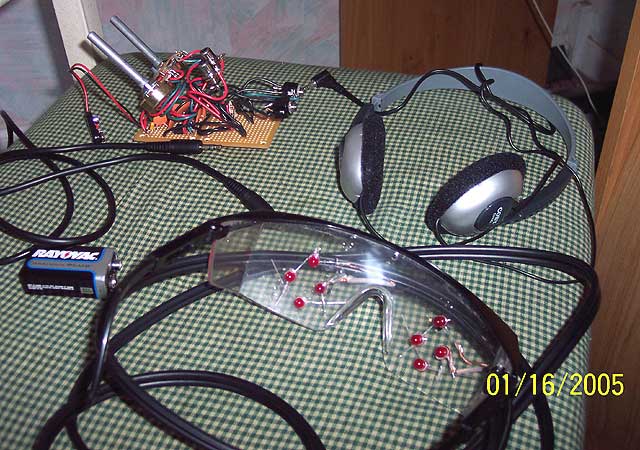

It's me again, Andrew Moya. I've taken another step forward with the original design. Instead of using the Parallel Port, I've designed a stand alone unit that can be used without a computer. Using a LM567 Tone Decoder and a suitable audio input from a CD you can experience the same extreme meditation. I was driven to make such a device when I discovered that BrainStar2 ("BRAINSTAR STILL EXCELLENT!!") was not capable of producing sound with XP. Maybe it can, but I couldn't get it to work. I used sounds from Brain Wave Generator to enhance my experience. Without HackCanada.com I would have never discovered this wonderful world of BIOFEEDBACK. Thanks HACKCANADA!!! If anyone has any questions about where to order parts, my Email is Mo42oya_420@yahoo.com.

Estimated TOTAL Cost was USD$50.00. That's with extra parts.

Update: 2005/01/20

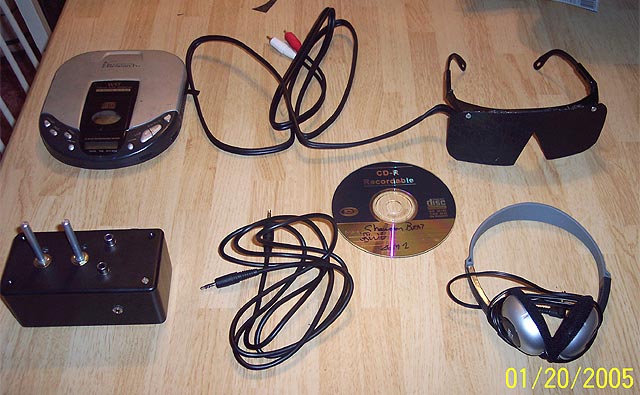

This is the completed project. I purchased a Project
Encloser from Radio Shack to house the unit.

A few tips if trying to duplicate.

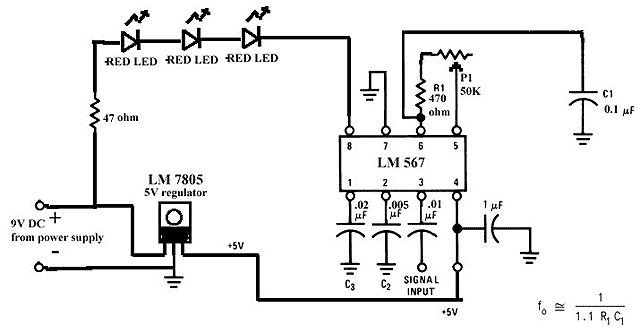

In the Circuit Diagram you must Double Every component
EXCEPT: the Battery and Voltage Regluator. A good
place for Parts is MOUSER.com They have all parts
needed.

GOOD LUCK. Feel Free to Email Me with feedback or
anything you might need help on.

A TWO Thumbs Up to CYB0RG/ASM.


Also Follow up on BRAINSTAR2... A DOS Emulator can be
used if you have problems with DOS based programs
DOSBOX - There is a SOUND Emulator also that can be
found with DOSBOX. These two programs will solve
issues with Windows XP.

Here is a List of Catalog numbers for all Parts...

PARTS:

-------------------------------------------------

Mouser Part #: 581-06033C103M Page 528
Mfr. Part #: 06033C103MAT2A Data Sheet
Mfr: AVX
Category: 0603 Ceramic Capacitors
Description: AVX 0603 SMD Ceramic Capacitors .01UF 25V
20% X7R
In Stock

1: $0.160
100: $0.130
500: $0.080
1000: $0.052
2000: View
**************************************************

Mouser Part #: 140-PF1H502K Page 523
Mfr. Part #: 140-PF1H502K Data Sheet
Mfr: Xicon
Category: Polyester Film Capacitors
Description: Xicon Radial Polyester Film Capacitors
CAP 50V .005uF 10%
In Stock

1: $0.100
100: $0.052
500: $0.047
1000: $0.043
2000: View


*******************************************************

Mouser Part #: 140-100Z5-203Z Page 561
Mfr. Part #: 140-100Z5-203Z Data Sheet
Mfr: Xicon
Category: Ceramic Disc Capacitors
Description: Xicon Ceramic Disc Capacitors .02uF 100V
Z5U Z

1: $0.120
200: $0.057
400: $0.054
1000: $0.051
2000: View

*******************************************************

Mouser Part #: 581-08053G105Z Page 529
Mfr. Part #: 08053G105ZAT2A Data Sheet
Mfr: AVX
Category: 0805 Ceramic Capacitors
Description: AVX 0805 SMD Ceramic Capacitors 25V 1.0UF
+80-20%
In Stock

1: $0.340
100: $0.300
500: $0.260
1000: $0.210
2000: View

*******************************************************

Mouser Part #: 511-L7805ACV
Mfr. Part #: L7805ACV
Mfr.: STMicroelectronics
Description: ST Voltage Regulators
TO-220AB 5.0V 1.0A Positive
Category: Regulators - ICs

7,335 Ships Immediately
Estimated Factory Lead Time: 4 weeks



1: $ 0.760
100: $ 0.440

500: $ 0.300

1,000: $ 0.260

2,000: $ 0.259
*******************************************************

Mouser Part #: 31CX405 Page 431
Mfr. Part #: 31CX405 Data Sheet
Mfr: Xicon
Category: Panel Mount Potentiometers
Description: Xicon 13mm Carbon Potentiometers 13MM PC
MNT 50K LINR
In Stock

1: $1.960
10: $1.630
100: $1.490
500: $1.350
1000: View

STOCK NUMBER                  PRICE  Ext. Price
=======================================================
513-NJM567D         8       8 Ships Immediately
0.300


IC CHIP

<—
